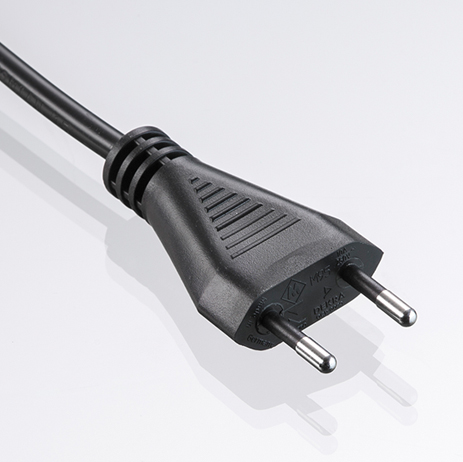

m95
Brazil | M 95

plug for safety class II

2-pole without earthing-contact
ABNT NBR NM 60884-1:2010 und
INMETRO Decree No. 85
dated April 3, 2006, 10A, 250 V
pins provided with inulation sleeves,
nickel plated

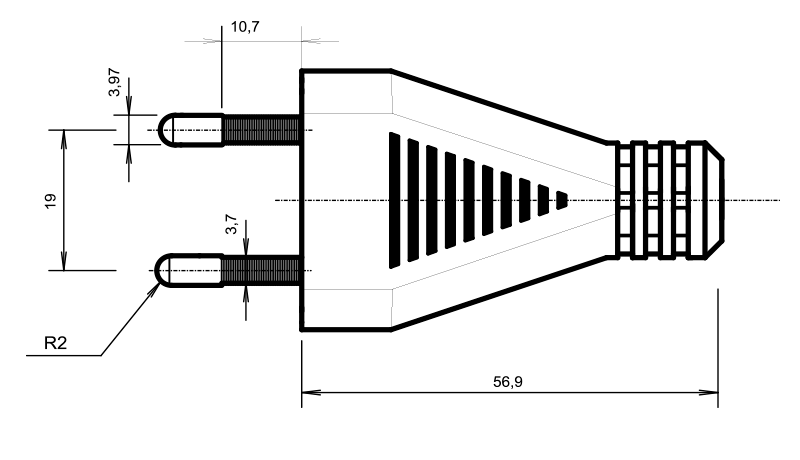

Technical drawing + Zoom

Suitable flexible cord types

H03VVH2-F 2X 0,75
H03VV-F 2X 0,75
H05VVH2-F 2X 0,75
H05VV-F 2X 0,75
H05VV-F 2X 1,00
H05VV-F 2X 1,50
H05V2V2-F 2X 0,75
H05V2V2-F 2X 1,00
H05V2V2-F 2X 1,50
H05RN-F 2X 0,75
H05RN-F 2X 1,00
H05RR-F 2X 0,75
H05RR-F 2X 1,00
H05RR-F 2X 1,50
H07RN-F 2X 1,00
H07RN-F 2X 1,50



Inmetro
m97
Brazil | M 97

plug for safety class I

2-pole with earthing-contact
ABNT NBR NM 60884-1:2004 und
INMETRO Decree No. 85
dated April 3, 2006, 10A 250 V,
pins provided with inulation sleeves,
nickel plated

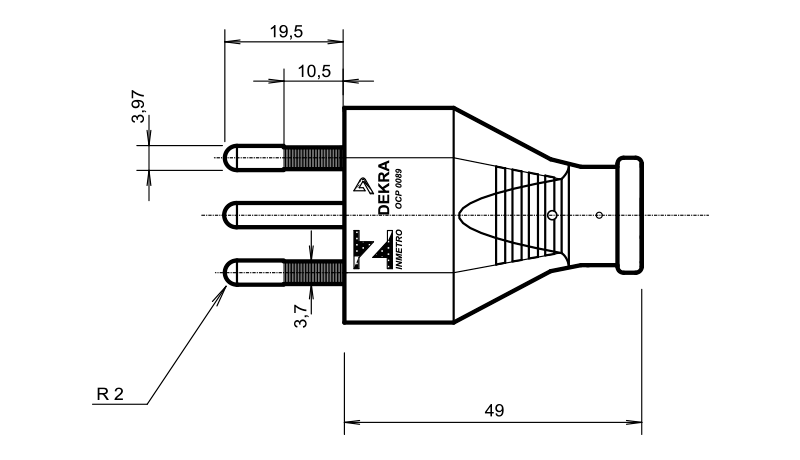

Technical drawing + Zoom

Suitable flexible cord types

H03VV-F 3G 0,75
H05VV-F 3G 0,75
H05VV-F 3G 1,00
H05VV-F 3G 1,50
H05V2V2-F 3G0,75
H05V2V2-F 3G1,00
H05V2V2-F 3G1,50
H05RN-F 3G 0,75
H05RN-F 3G 1,00
H05RR-F 3G 0,75
H05RR-F 3G 1,00
H05RR-F 3G1,50
H07RN-F 3G 1,00
H07RN-F 3G 1,50



Inmetro

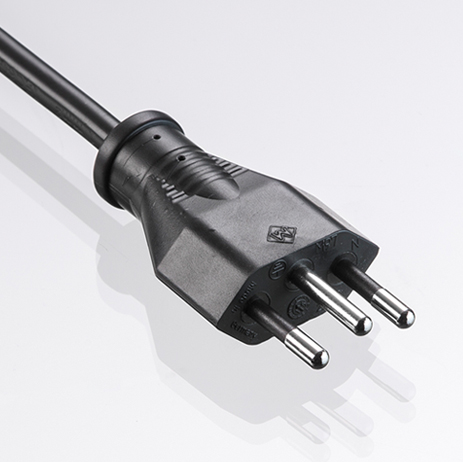

m98
Brazil | M 98

plug for safety class I

2-pole with earthing-contact
ABNT NBR NM 60884-1:2010
12 A/16 A/20 A 250 V,
pins provided with inulation sleeves,
nickel plated

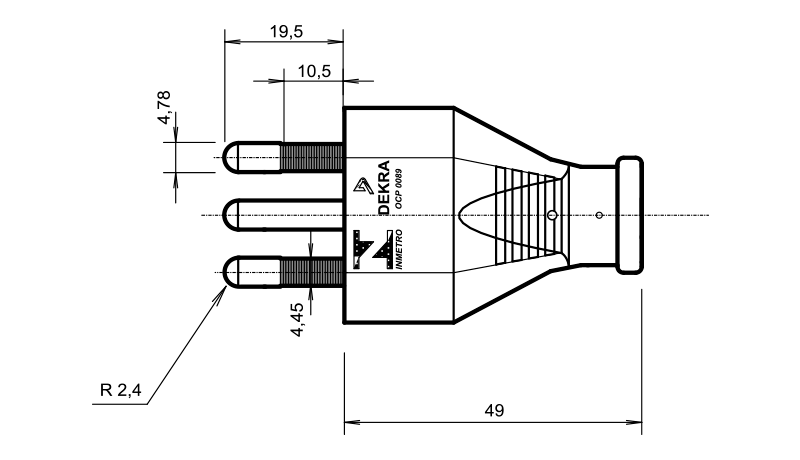

Technical drawing + Zoom

Suitable flexible cord types

H05VV-F 3G 1,00 12 A
H05V2V2-F 3G 1,00 12 A
H05RN-F 3G 1,00 12 A
H05RR-F 3G 1,00 12 A
H07RN-F 3G 1,00 12 A
H05VV-F 3G 1,50 16 A
H05V2V2-F 3G 1,50 16 A
H05RR-F 3G 1,50 16 A
H07RN-F 3G 1,50 16 A
H05VV-F 3G 2,50 20 A
H05V2V2-F 3G 2,50 20 A
H07RN-F 3G 2,50 20 A



Inmetro
