South Africa
|
M 65
Stecker der Schutzklasse I und II
plug for safety class I+II
16 A, 250 V~ 2-pole plug with
without earthing-contact
pins provided with insulating sleeves,
nickel-plated

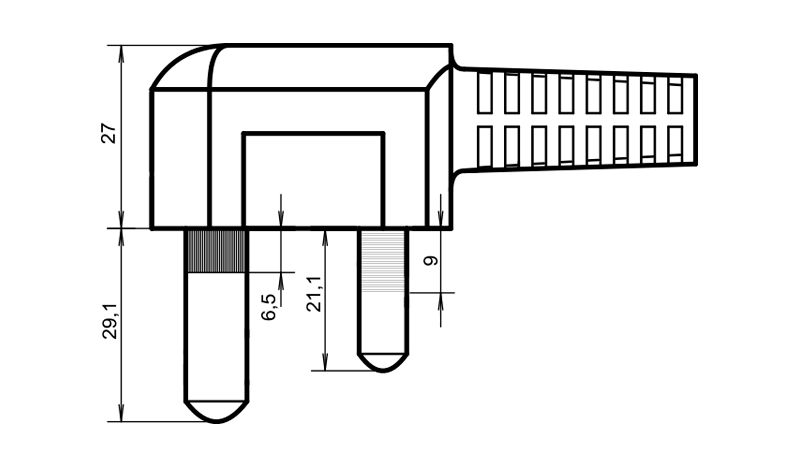

Technical drawing + Zoom
Suitable flexible cord types
| H05VVH2-F | 2X 0,75 |
| H05VV-F | 2X 0,75 |
| H05VV-F | 2X 1,00 |
| H05VV-F | 2X 1,50 |
| H05RR-F | 2X 0,75 |
| H05RR-F | 2X 1,00 |
| H05RR-F | 2X 1,50 |
| H05RN-F | 2X 0,75 |
| H05RN-F | 2X 1,00 |
| H07RN-F | 2X 1,00 |
| H07RN-F | 2X 1,50 |
| H05BQ-F | 2X 1,00 |
| H05BQ-F | 2X 1,00 |
| H07BQ-F | 2X 1,50 |
| H05VV-F | 3G 0,75 |
| H05VV-F | 3G 1,00 |
| H05VV-F | 3G 1,50 |
| H05RR-F | 3G 0,75 |
| H05RR-F | 3G 1,00 |
| H05RR-F | 3G 1,50 |
| H05RN-F | 3G 0,75 |
| H05RN-F | 3G 1,00 |
| H07RN-F | 3G 0,75 |
| H07RN-F | 3G 1,00 |
| H07RN-F | 3G 1,50 |
| H07RN-F | 3G 2,50 |
| H07BQ-F | 3G 1,50 |
