Plugs

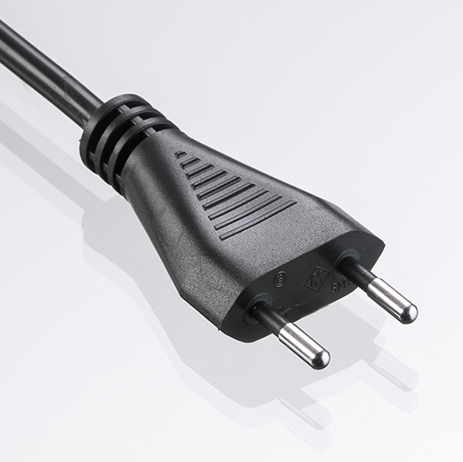

sm11
Switzerland | SM 11

plug for safety class I

2-pole without earthing contact
CH-Type 11, 10 A, 250 V~, SEV 1011:09+A1:12
IEC 60884-1 (Ed.3)
pins provided with insulation sleeves,
nickel plated

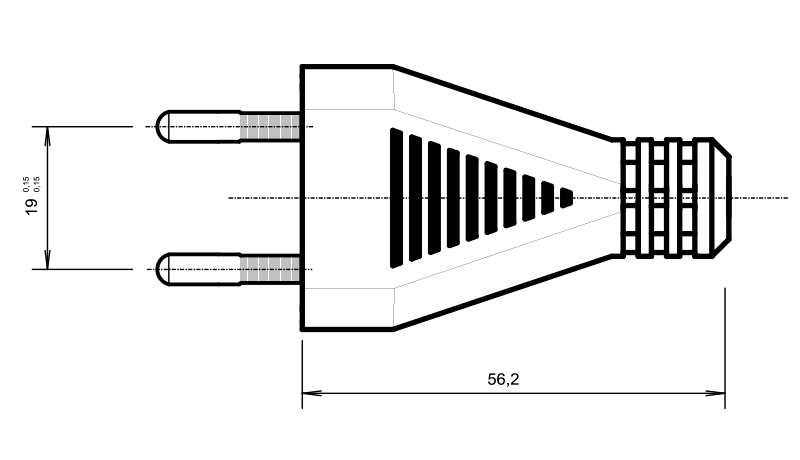

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H03VV-H2F 2X 0,75
H05VVH2-F 2X 0,75
H05VVH2-F 2X 1,00
H03VV-F 2X 0,75
H05VV-F 2X 0,75
H05VV-F 2X 1,00
H05VV-F 2X 1,50
H05V2V2-F 2X 0,75
H05V2V2-F 2X 1,00
H05RN-F 2X 0,75
H05RN-F 2X 1,00
H05RR-F 2X 0,75
H05RR-F 2X 1,00
H07RN-F 2X 1,00
H07RN-F 2X 1,50
H05BQ-F 2X 1,00
H07BQ-F 2X 1,50
APP Schweiz
m12

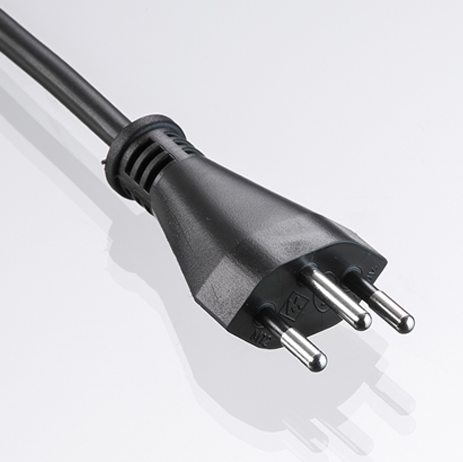

Switzerland | M 12

plug for safety class I

2-pole plug with earthing-contact
CH-Type 12, 10 A, 250 V~, SEV 1011:09+A1:12
IEC 60884-1:2002 (Ed.3)
pins provided with inulation sleeves,
nickel-plated

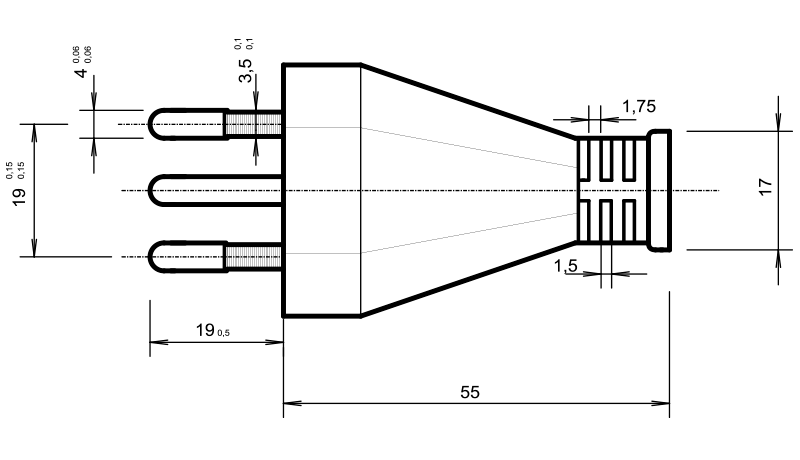

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H03VV-F 3G 0,75
H03RT-F 3G 0,75
H05VV-F 3G 0,75
H05VV-F 3G 1,00
H05VV-F 3G 1,50
H05V2V2-F 3G 0,75
H05V2V2-F 3G 1,00
H05V2V2-F 3G 1,50
H05RN-F 3G 0,75
H05RN-F 3G 1,00
H05RR-F 3G 0,75
H05RR-F 3G 1,00
H05RR-F 3G 1,50
H07RN-F 3G 1,00
H07RN-F 3G 1,50
H07BQ-F 3G 1,50
APP Schweiz

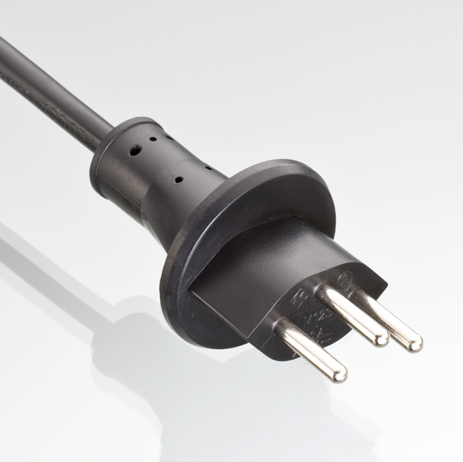

m12S
Switzerland | M 12S

plug for safety class I

2-pole plug with earthing-contact
splash-proof IP 44
CH-Typ 12 10 A, 250 V~, SEV 1011:09+A1:12
IEC 60884-1:2002 (Ed.3)
pins provided with inulation sleeves,
nickel-plated

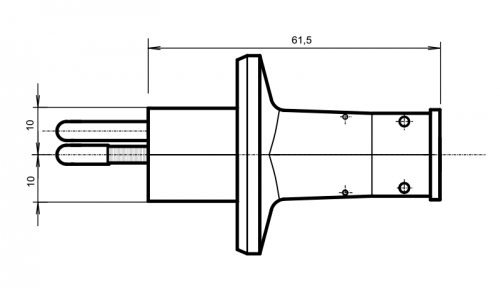

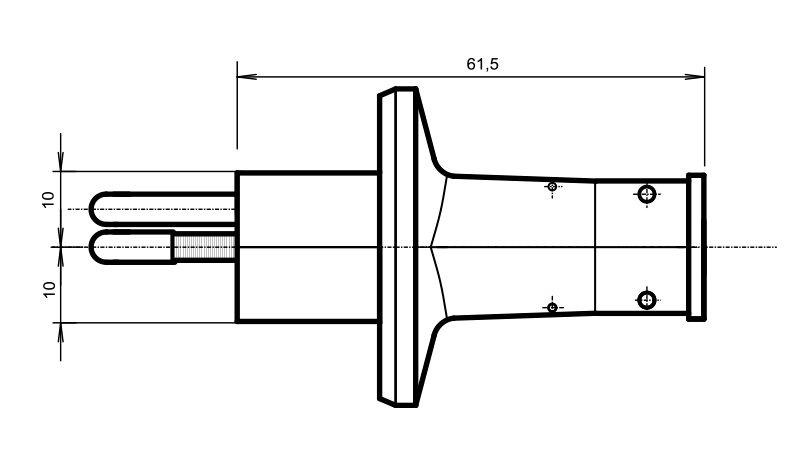

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 3G 0,75
H05VV-F 3G 1,00
H05VV-F 3G 1,50
H05BQ-F 3G 0,75
H05BQ-F 3G 1,00
H07BQ-F 3G 1,50
H05RN-F 3G 0,75
H05RN-F 3G 1,00
H05RR-F 3G 0,75
H05RR-F 3G 1,00
H05RR-F 3G 1,50
H07RN-F 3G 1,00
H07RN-F 3G 1,50
APP Schweiz
m23G

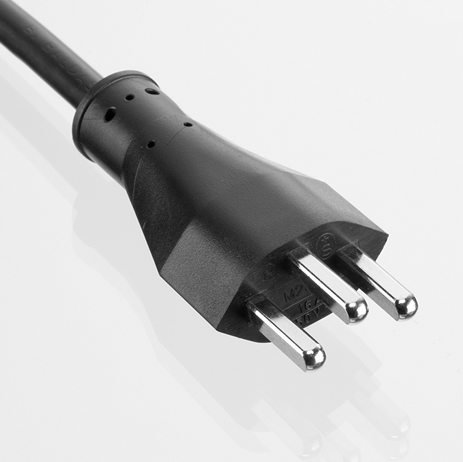

Switzerland | M 23G

plug for safety class I

2-pole with earthing-contact
SEV 1011:98, IEC 60884-1:02+A1:06,
CH-Typ 23, 16 A, 250 V~,
pecification sheet 5934:98
solid metal pins, nickel-plated

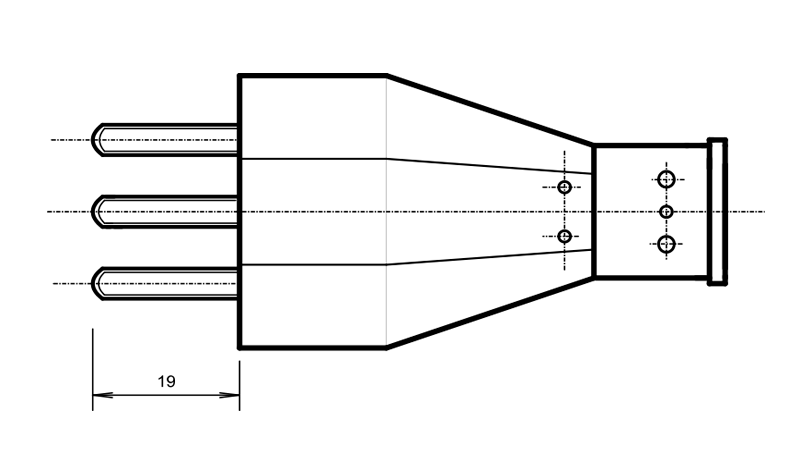

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 3G 0,75
H05VV-F 3G 1,00
H05VV-F 3G 1,50
H05VV-F 3G 2,50
H07RN-F 3G 1,00
H07RN-F 3G 1,50
H05RN-F 3G 0,75
H05RN-F 3G 1,00
H05RR-F 3G 0,75
APP Schweiz

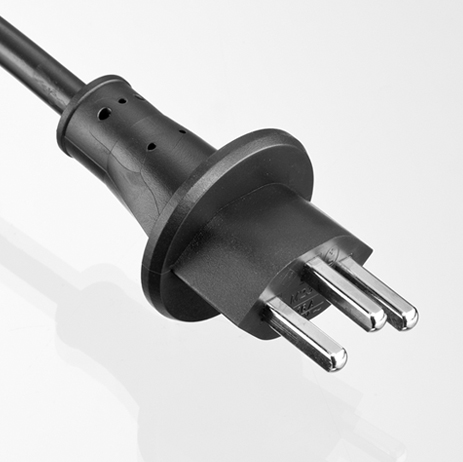

m23S
Switzerland | M 23S

plug for safety class I

2-pole with earthing-contact, splash-proof IP 44
SEV 1011:98, IEC 60884-1:02+A1:06,
CH-Typ 23, 16 A, 250V~, specification sheet 6534-2
solid metal pins, nickel-plated

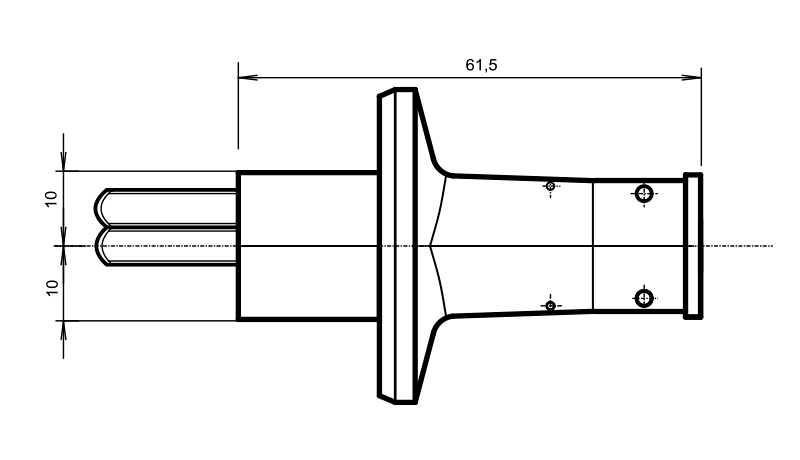

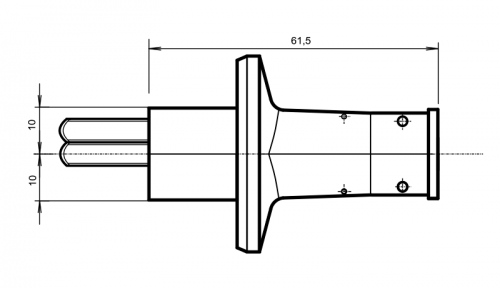

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 3G 0,75
H05VV-F 3G 1,00
H05VV-F 3G 1,50
H05VV-F 3G 2,50
H05RN-F 3G 0,75
H05RN-F 3G 1,00
H05RR-F 3G 0,75
H05RR-F 3G 1,00
H05RR-F 3G 1,50
H07RN-F 3G 1,00
H07RN-F 3G 1,50
APP Schweiz
