Portable Socket Outlets

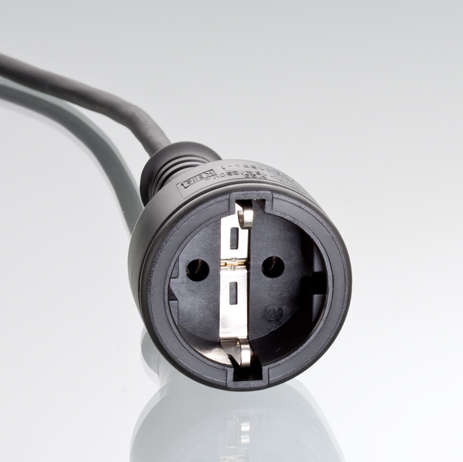

m33 ok
Europe | M33

portable socket-outlet for safety class I

2-pole with side earthing-contact
IEC 60884-1:1994+A1:94+A2:95,
16 A, 250 V~

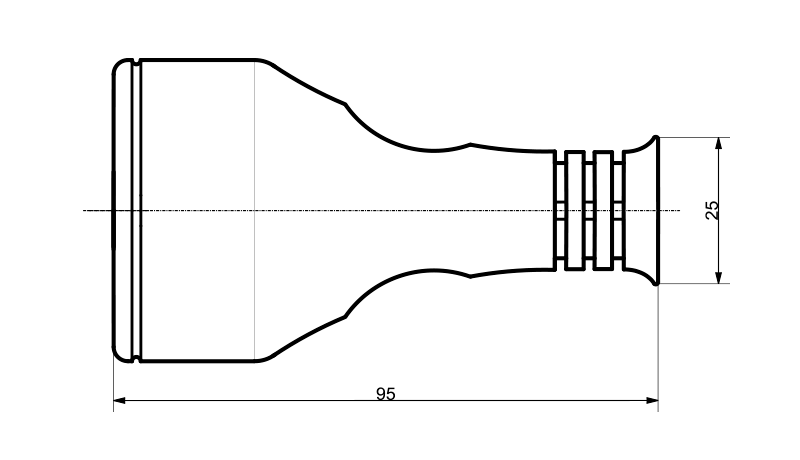

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 3G 1,00
H05VV-F 3G 1,50
H05RN-F 3G 1,00
H07RN-F 3G 1,00
H07RN-F 3G 1,50
KEMA Europe
m33S

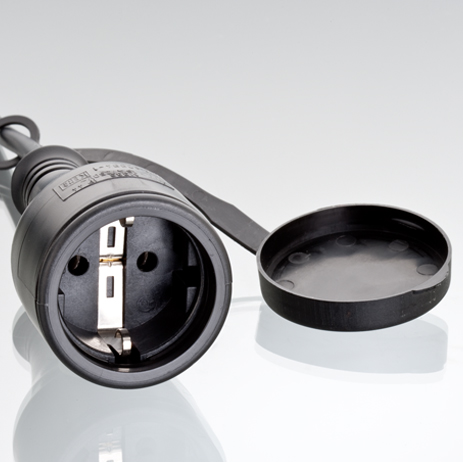

Europe | M33S

portable socket-outlet for safety class I

2-pole with side earthing-contact,
splash proof IP 44
IEC 60884-1:1994+A1:94+A2:95,
16 A, 250 V~

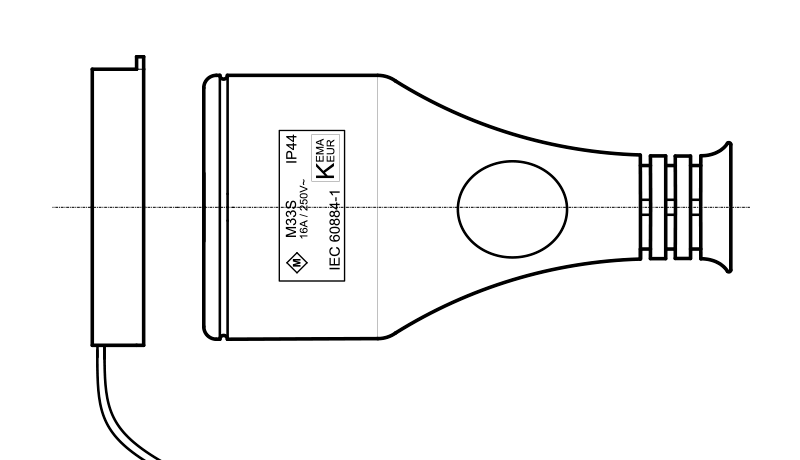

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 3G 1,00
H05VV-F 3G 1,50
H05BQ-F 3G 1,00
H07BQ-F 3G 1,50
H07BQ-F 3G 2,50
H05RN-F 3G 1,00
H07RN-F 3G 1,00
H07RN-F 3G 1,50
H07RN-F 3G 2,50
KEMA Europe
m34

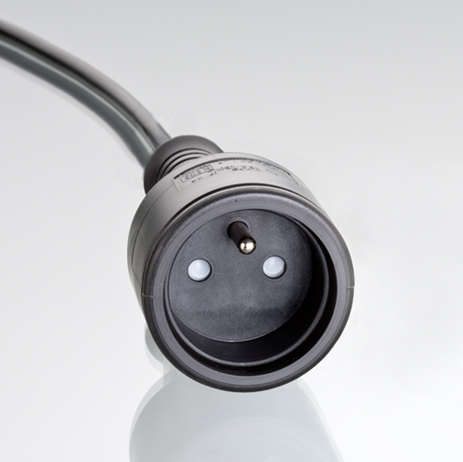

Europe | M34

portable socket-outlet for safety class I

2-pole with earthing-contact pin
IEC 60884-1:1994+A1:94+A2:95, 16 A, 250 V~
France

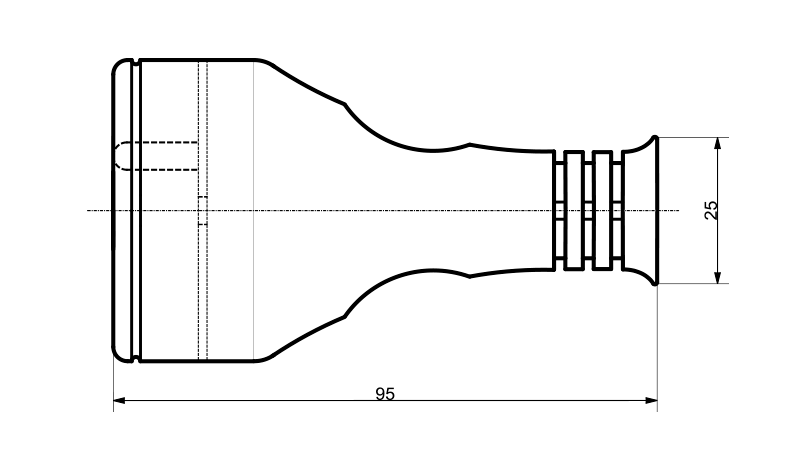

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 3G 1,50
H07RN-F 3G 1,50
KEMA Europe
m34S

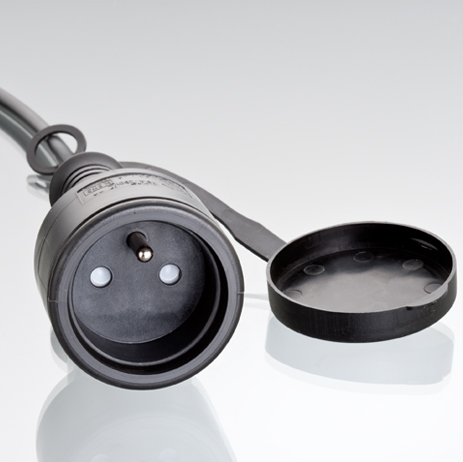

Europe | M34S

portable socket-outlet for safety class I

2-pole with earthing-contact pin,
splash proof IP 44
IEC 60884-1:1994+A1:94+A2:95,
16 A, 250 V~
France

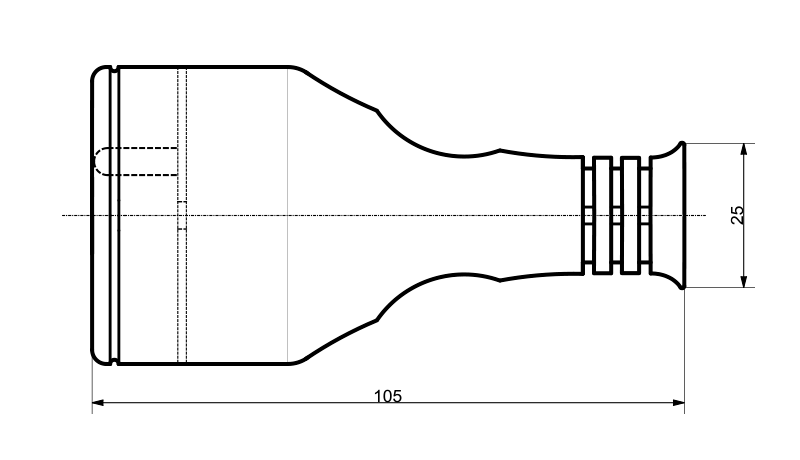

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 3G 1,50
H05BQ-F 3G 1,00
H07BQ-F 3G 1,50
H07RN-F 3G 1,00
H07RN-F 3G 1,50
H07RN-F 3G 2,50
KEMA Europe
m35

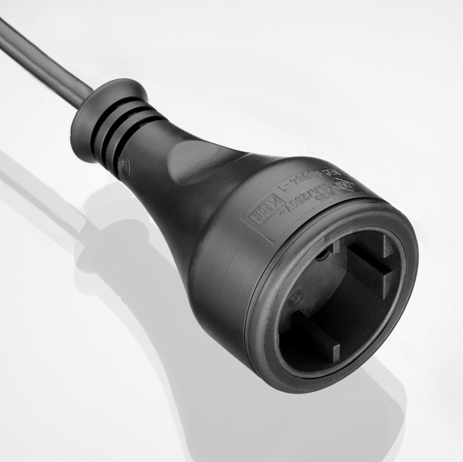

Europe | M35

portable socket-outlet for safety class II

2-pole without earthing-contact
IEC 60884-1:1994+A1:94+A2:95, 16 A, 250 V~

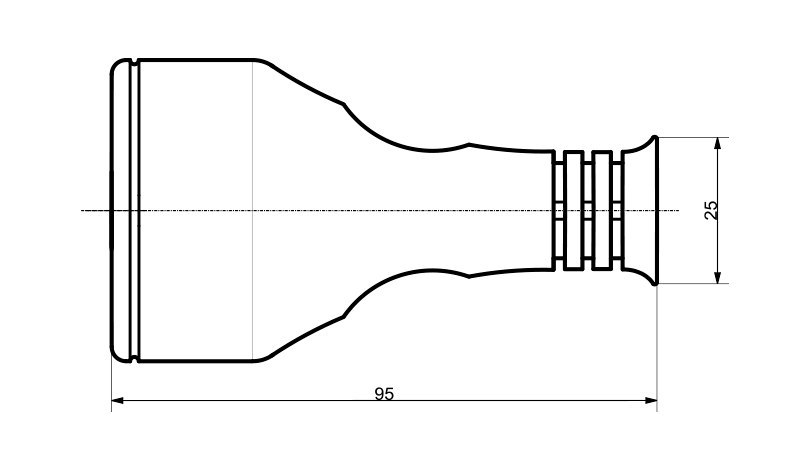

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 2x1,00
H05VV-F 2x1,50
H05RN-F 2x1,00
KEMA Europe
