Portable Socket Outlets

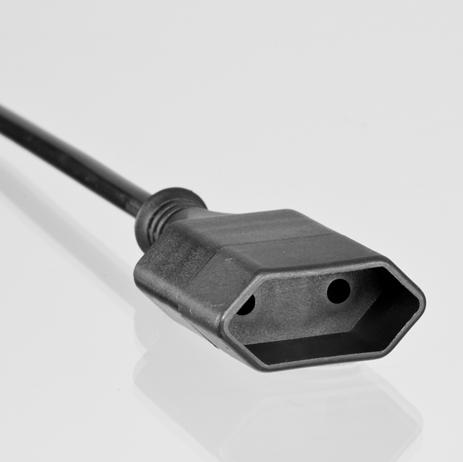

m13
Switzerland | M 13

portable socket-outlets for safety class II

2-pole without earthing contact
SEV 1011:98, IEC 60884-1:02, 10 A, 250 V~
specification sheet 6535

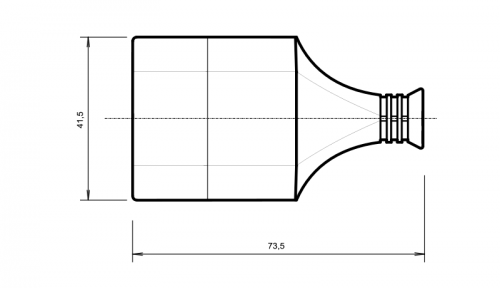

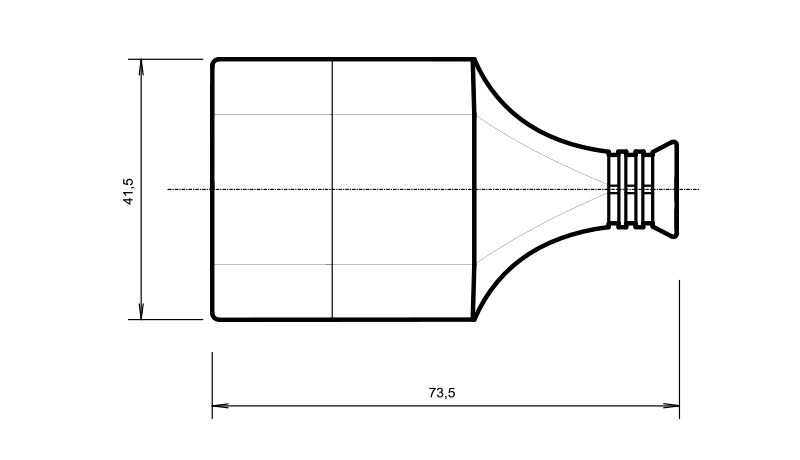

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 2X 1,00
H05VV-F 2X 1,50
H05BQ-F 2X 1,00
H05RN-F 2X 1,00
H07RN-F 2X 1,00




APP Schweiz

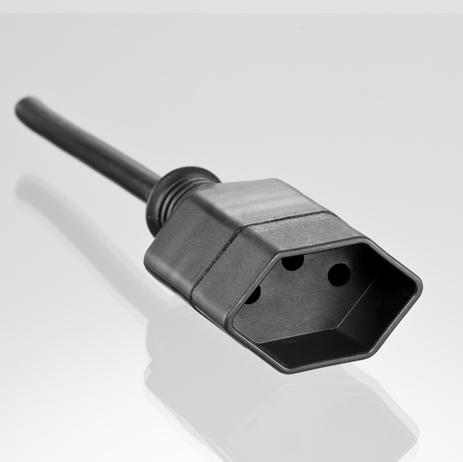

m14
Switzerland | M 14

portable socket-outlets for safety class I

2-pole with earthing-contact,
SEV 1011:98, IEC 60884-1:02,
CH Typ 13, 10 A, 250 V~
specification sheet 6533-1

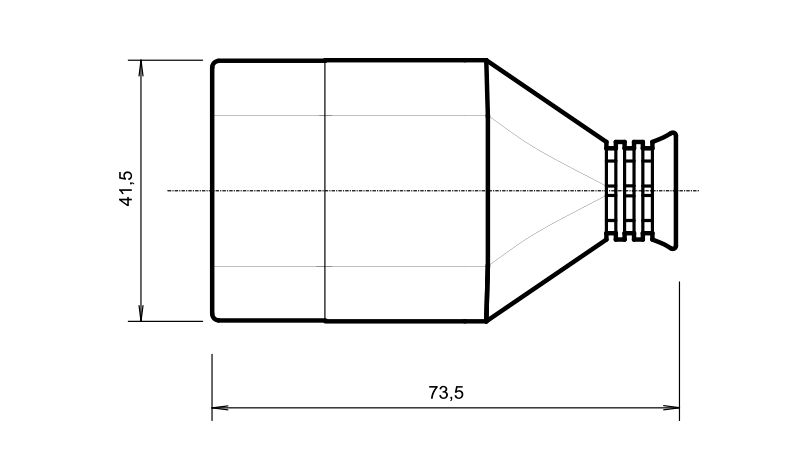

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 3G 1,00
H05VV-F 3G 1,50
H05BQ-F 3G 1,00
H05RN-F 3G 1,00
H07RN-F 3G 1,00
APP Schweiz

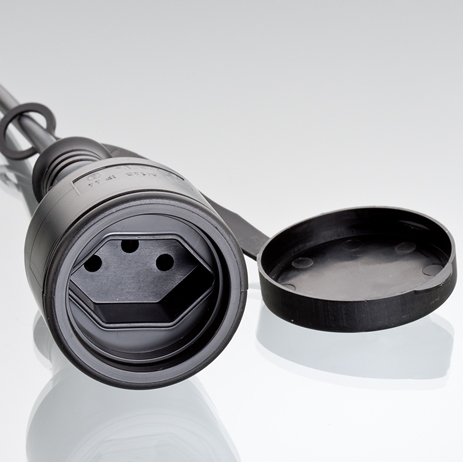

m14 S
Switzerland | M 14S

portable socket-outlets for safety class I

2-pole with earthing-contact, splash proof IP 44
SEV 1011:98, IEC 60884-1:02
CH Typ 13, 10 A, 250 V~
specification sheet 6533-1

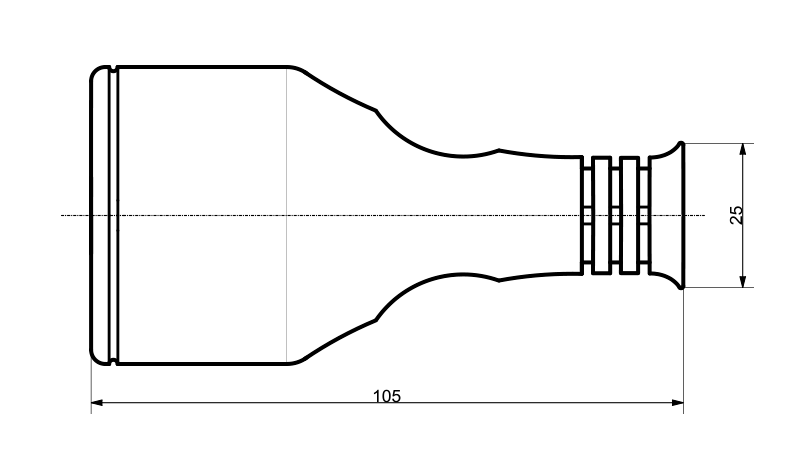

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 3G 1,00
H05VV-F 3G 1,50
H07RN-F 3G 1,00
H07RN-F 3G 1,00
APP Schweiz

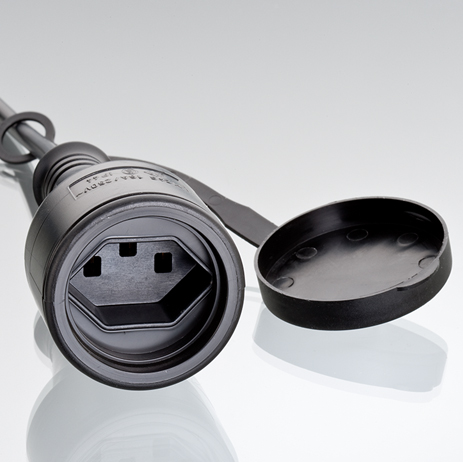

m24 S
Switzerland | M 24S

portable socket-outlet for safety class II

2-pole with earthing-contact, splash proof IP 44
SEV 1011:98, IEC 60884-1:02
CH-Typ 23, 16 A, 250 V~
specification sheet 5934-1

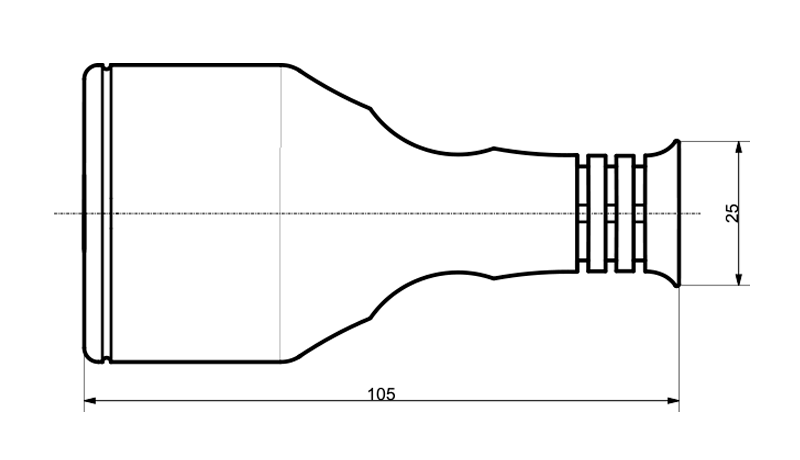

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H05VV-F 3G 1,50
H05BQ-F 3G 1,00
H07BQ-F 3G 1,50
H07RN-F 3G 1,50
H07RN-F 3G 2,50
APP Schweiz
