Plugs

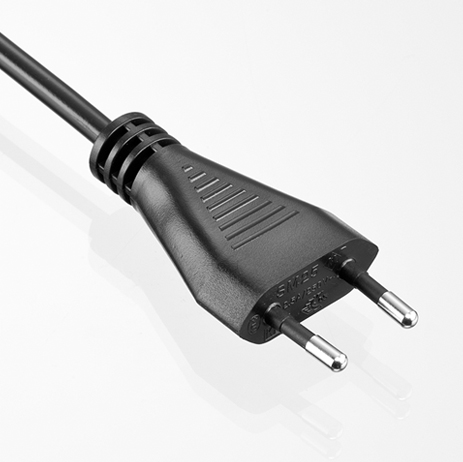

sm25
Europe | SM 25

plug for safety class II

2-pole without earthing-contact
flat plug
EN 50075:1990; 2,5 A, 250 V~
pins provided with insulating sleeves,
nickelplated, inclined

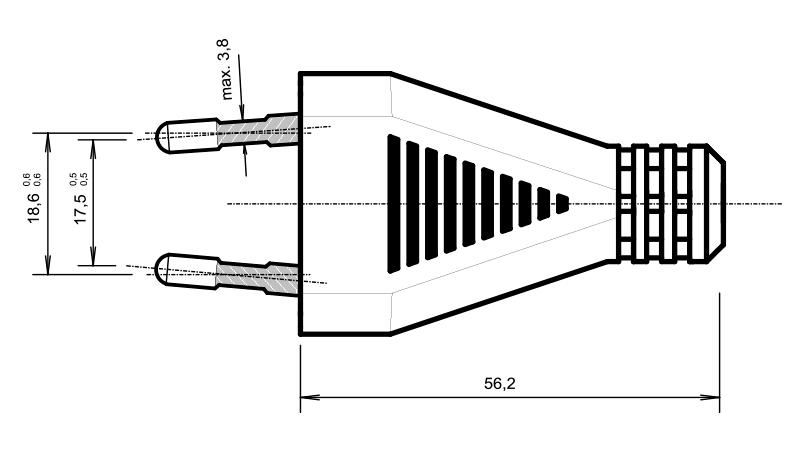

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H03VV-H2F 2 x 0,75
H03VV-F 2 x 0,75
H05VVH2-F 2 x 0,75
H05VV-F 2 x 0,75
H05VV-F 2 x 1,0
H05RR-F 2 x 0,75
H05RR-F 2 x 1,0
H05RN-F 2 x 0,75
H05RN-F 2 x 1,0

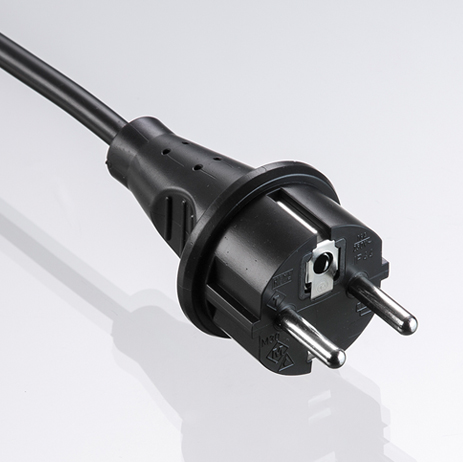

m30
Europe | M 30

plug for safety class I

2-pole plug with dual earthing-contacts,
splash-proof IP 44
IEC 60884-1 (ed.3) 16 A, 250 V~
solid metal pins, nickel-plated

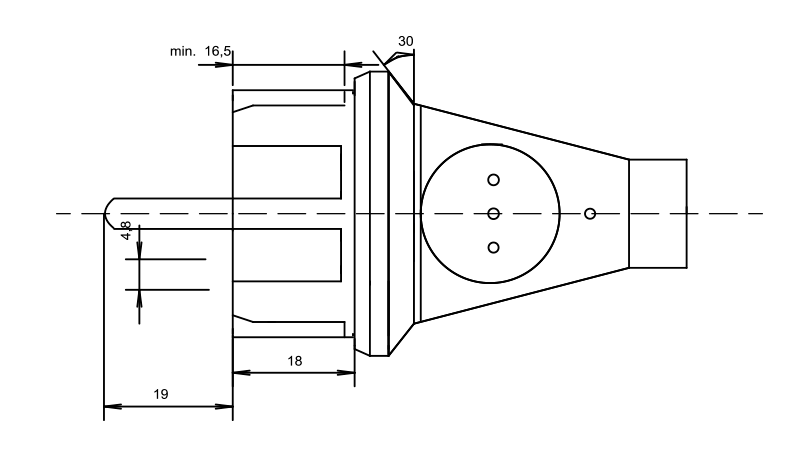

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H03VV-F 3G 0,75
H05VV-F 3G 0,75
H05VV-F 3G 1,0
H05VV-F 3G 1,5
H05VV-F 3G 2,5
H05RR-F 3G 0,75
H05RR-F 3G 1,0
H05RR-F 3G 1,5
H05RN-F 3G 0,75
H05RN-F 3G 1,0
H07RN-F 3G 1,0
H07RN-F 3G 1,5
H07RN-F 3G 2,5
H05BQ-F 3G 0,75
H05BQ-F 3G 1,0
H07BQ-F 3G 1,5
H07BQ-F 3G 2,5
KEMA Europe CEBEC

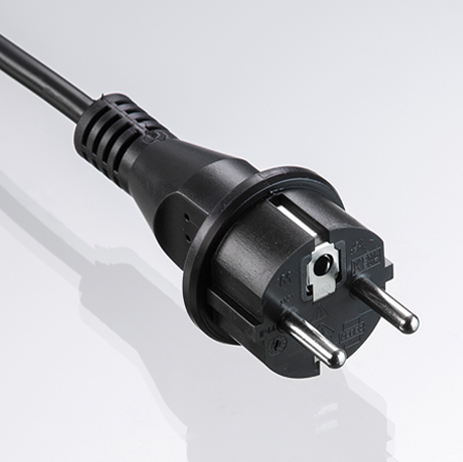

m31
Europe | M 31

plug for safety class I

2-pole plug with dual earthing-contacts,
splash-proof IP 44
IEC 60884-1 (ed.3) 16 A, 250 V~
solid metal pins, nickel-plated

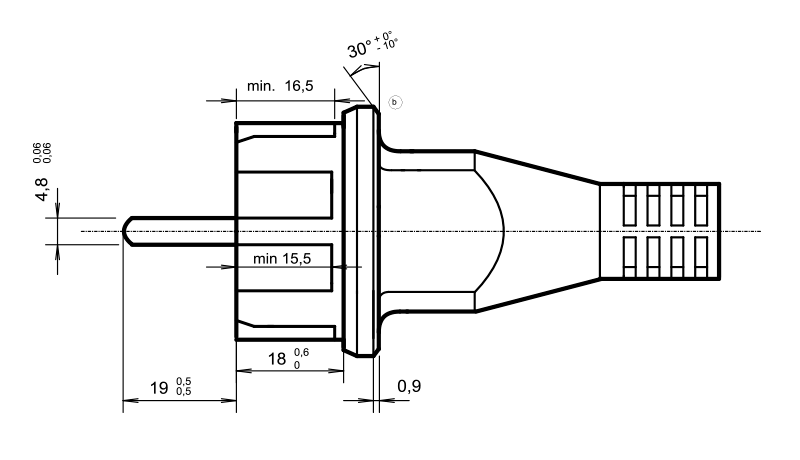

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H03VV-F 3G 0,75
H05VV-F 3G 0,75
H05VV-F 3G 1,0
H05VV-F 3G 1,5
H05VV-F 3G 2,5
H05RR-F 3G 0,75
H05RR-F 3G 1,0
H05RR-F 3G 1,5
H05RN-F 3G 0,75
H05RN-F 3G 1,00
H07RN-F 3G 1,00
H07RN-F 3G 1,50
H05BQ-F 3G 0,75
H05BQ-F 3G 1,00
H07BQ-F 3G 1,50
KEMA Europe CEBEC
m32

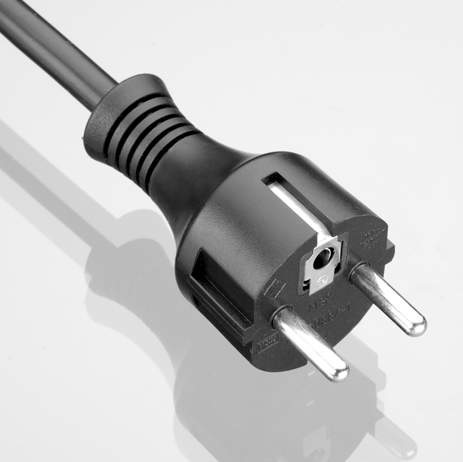

Europe | M 32

plug for safety class I

2-pole plug with dual earthing-contacts
IEC 60884-1:94+A1:94+A2:95,
16 A, 250 V~
solid metal pins, nickel-plated

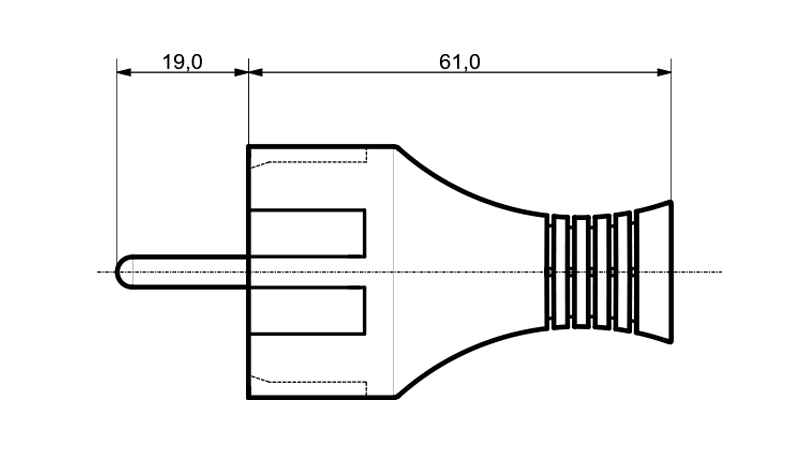

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H03VV-F 3G 0,75
H05VV-F 3G 0,75
H05VV-F 3G 1,0
H05VV-F 3G 1,5
H05VV-F 3G 2,5
H05RR-F 3G 0,75
H05RR-F 3G 1,0
H05RR-F 3G 1,5
H05RN-F 3G 0,75
H05RN-F 3G 1,0
H07RN-F 3G 1,0
H07RN-F 3G 1,5
H07RN-F 3G 2,5
H05BQ-F 3G 0,75
H05BQ-F 3G 1,0
H07BQ-F 3G 1,5
H07BQ-F 3G 2,5
KEMA Europe CEBEC

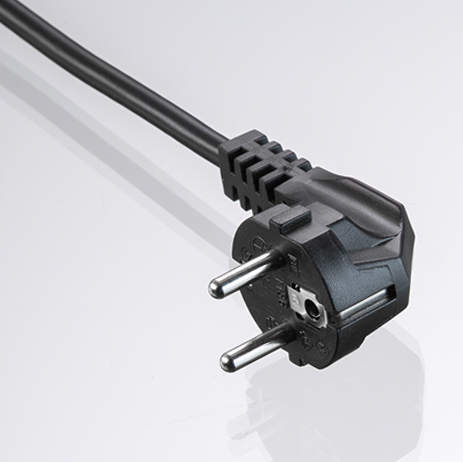

m36
Europe | M 36

plug for safety class I

2-pole plug with
dual earthing-contacts
EC 60884-1 (ed.3), 16 A, 250 V~
solid metal pins, nickel-plated

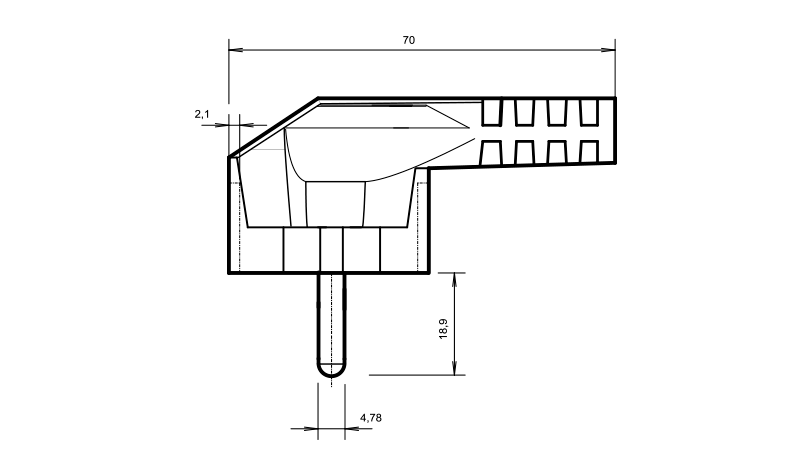

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H03VV-F 3G 0,75
H03RT-F 3G 0,75
H05VV-F 3G 0,75
H05VV-F 3G 1,00
H05VV-F 3G 1,50
H05V2V2-F 3G 0,75
H05V2V2-F 3G 1,00
H05V2V2-F 3G 1,50
H05RR-F 3G 0,75
H05RR-F 3G 1,00
H05RR-F 3G 1,50
H05RN-F 3G 0,75
H05RN-F 3G 1,00
H07RN-F 3G 1,00
H07RN-F 3G 1,50



CEBEC KEMA Europe
m41

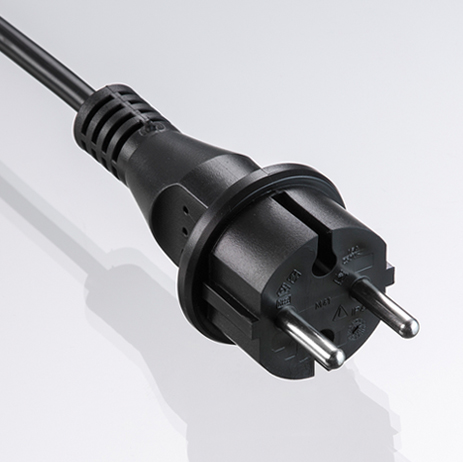

Europe | M 41

plug for safety class II

2-pole contourplug,
splash proof IP 44
IEC 60884-1 (ed.3), 16 A, 250 V~
pins, nickel-plated

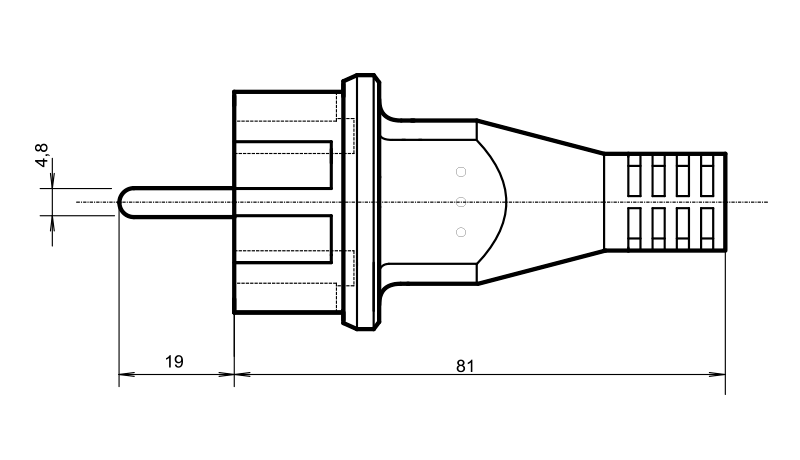

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H03VV-F 2 X 0,75
H05VV-F 2 X 0,75
H05VV-F 2 X 1,00
H05VV-F 2 X 1,50
H05RR-F 2 x 0,75
H05RR-F 2 X 1,00
H05RR-F 2 X 1,50
H05RN-F 2 X 0,75
H05RN-F 2 X 1,00
H07RN-F 2 X 1,00
H07RN-F 2 X 1,50
H07RN-F 2 X 2,50
H07BQ-F 2 X 1,50
KEMA Europe CEBEC

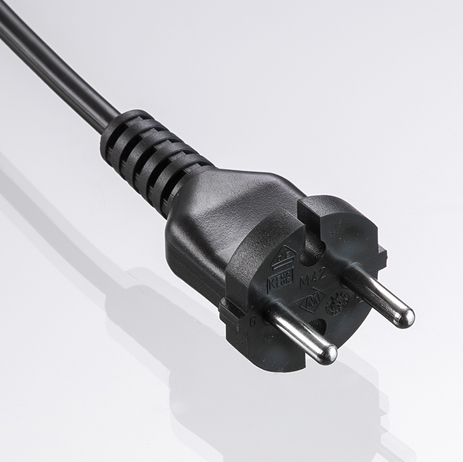

m42
Europe | M 42

plug for safety class II

2-pole contour plug
IEC 60884-1 (ed.3), 16 A, 250 V~
solid metal pins
nickel-plated

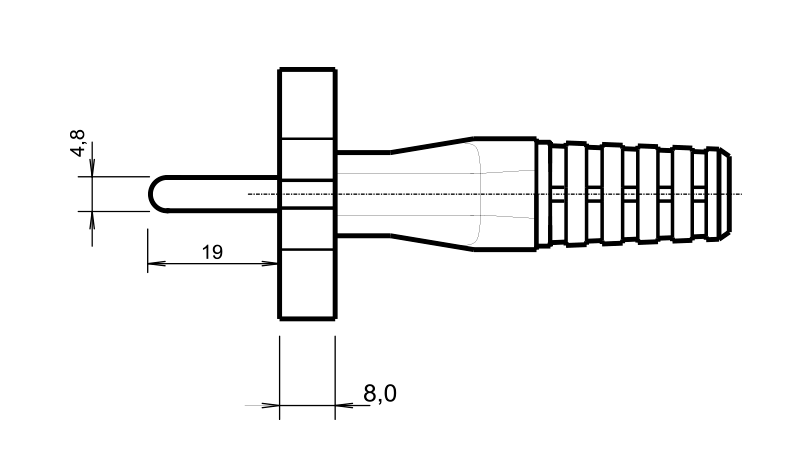

Technical drawing + Zoom

Data sheet

Suitable flexible cord types

H03VVH2-F 2X 0,75
H03VV-F 2X 0,75
H05VVH2-F 2X 0,75
H05VV-F 2X 0,75
H05VV-F 2X 1,00
H05VV-F 2X 1,50
H05V2V2-F 2X 0,75
H05RR-F 2X 0,75
H05RR-F 2X 1,00
H05RN-F 2X 0,75
H05RN-F 2X 1,00
H07RN-F 2X 1,00
H07RN-F 2X 1,50
H05BQ-F 2X 1,00
CEBEC KEMA Europe
